Shock Tools

Shock Body / Reservoir Holding Tools 58 & 65mm

Description

TFSH 58 and TFSH 65

Ideal for removing and installing WP and RT shock and reservoir bodies

Four pinch bolts and can be used in a hydraulic press for additional holding power

Billet aluminum

Note: You can make custom bushings to clamp smaller tubes including Fork Tubes, Shock Bodies, etc. Custom bushings can be made by your local machinist and are not available through RT

TFSH 58 (58mm)

TFSH 65 (65mm)

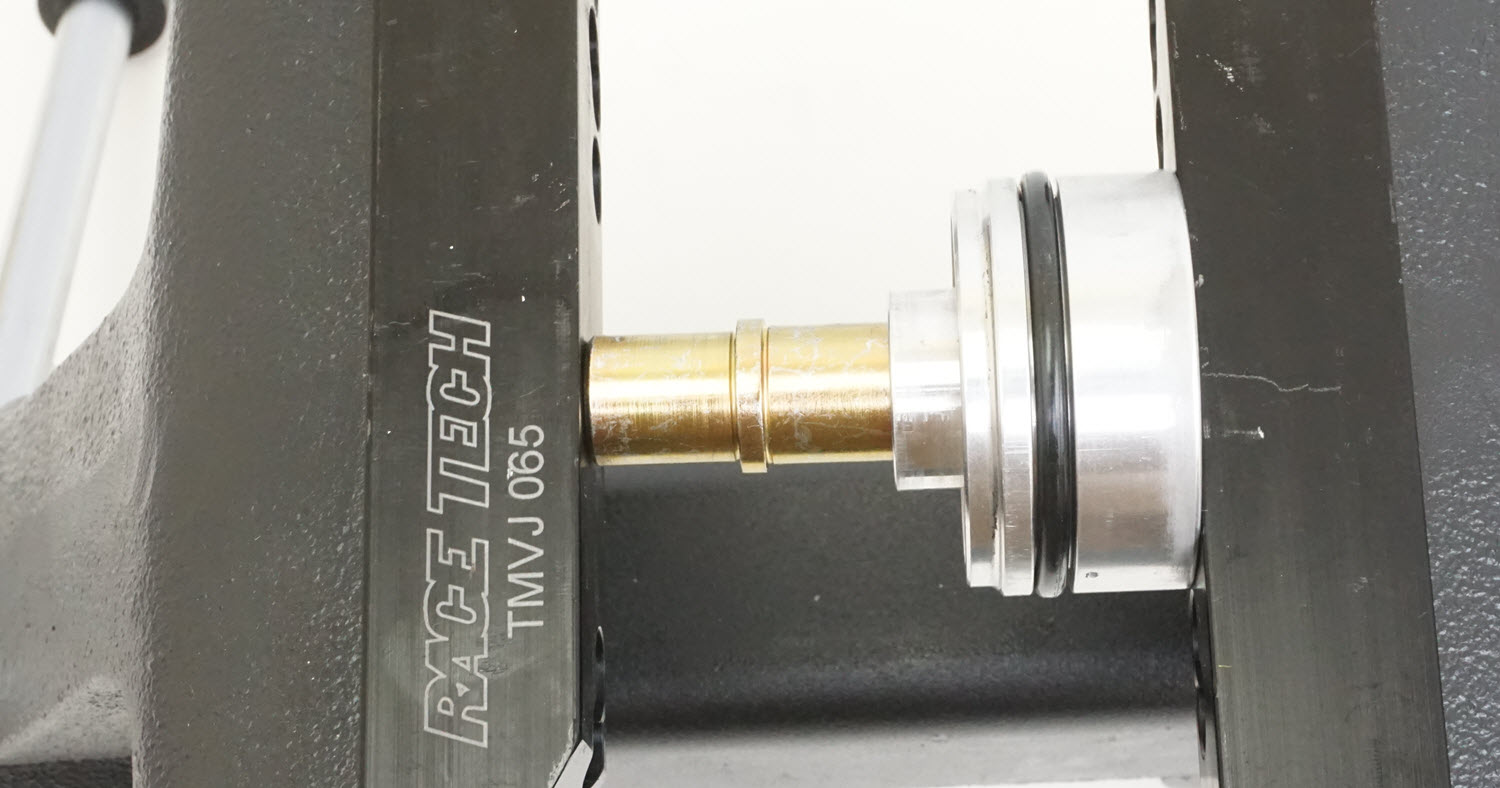

Bushing Drivers

Description

TSBD SET

Used to remove and replace shock shaft bushings into most seal heads

12.5, 14, 16, and 18mm

Shock Compression Adjuster Sockets

Description

TSCA Series

Used to service shock compression adjusters.

Item codeFits
TSCA 01YZ Special
TSCA 19
19mm, 2 flats
TSCA 2121mm, 2 flats
TSCA 24
24mm, 2 flats
TSCA 34
34mm, 12 point WP

Note: On some shocks there are punch marks at the threads. These must be drilled 1 mm deep prior to compression adjuster removal.


TSCA 34 WP 12 point

Description

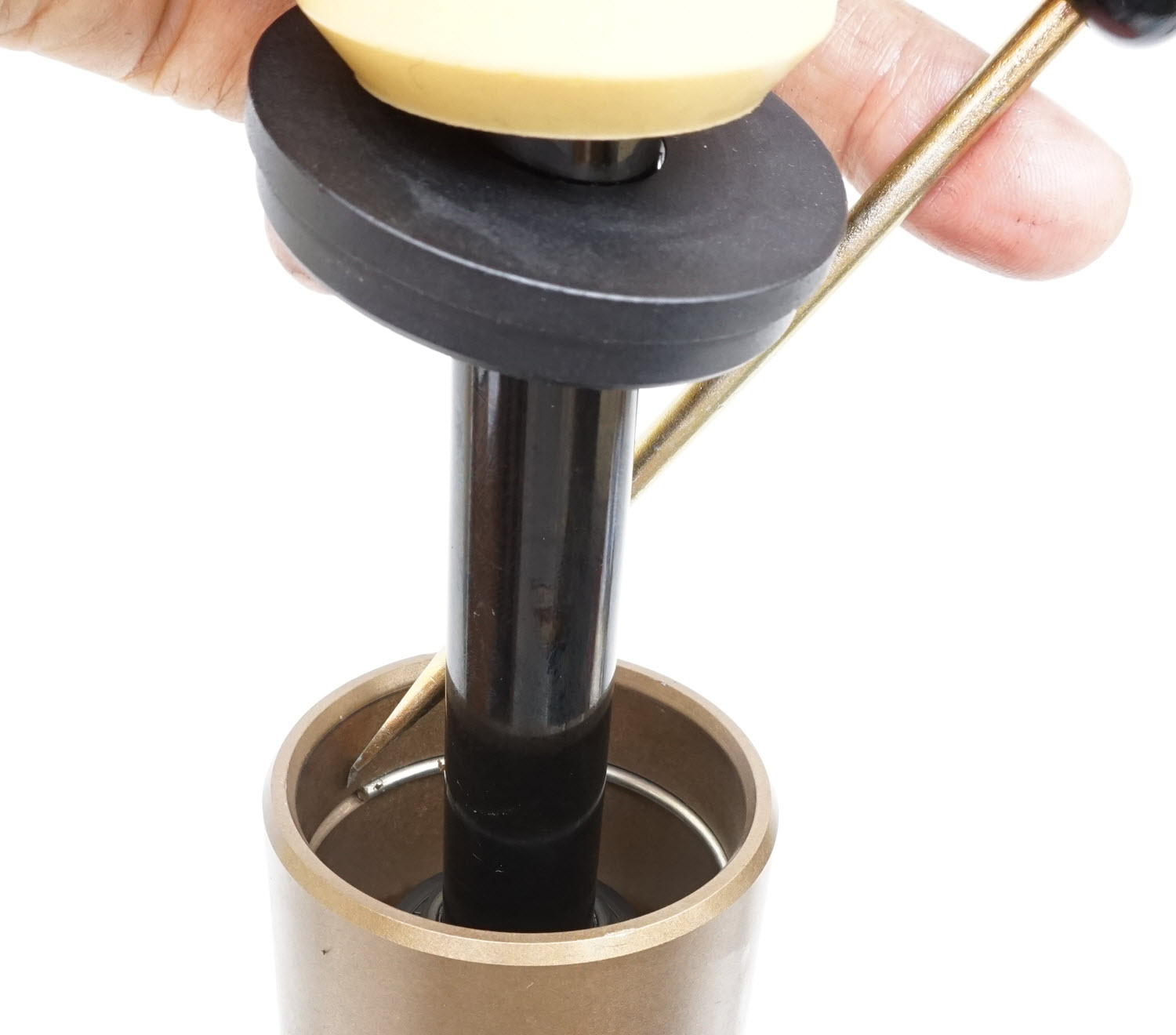

TSCP 01

Removes shock retaining clips without digging into the shock bodies

Made of hardened tool steel

You'll really like this one!

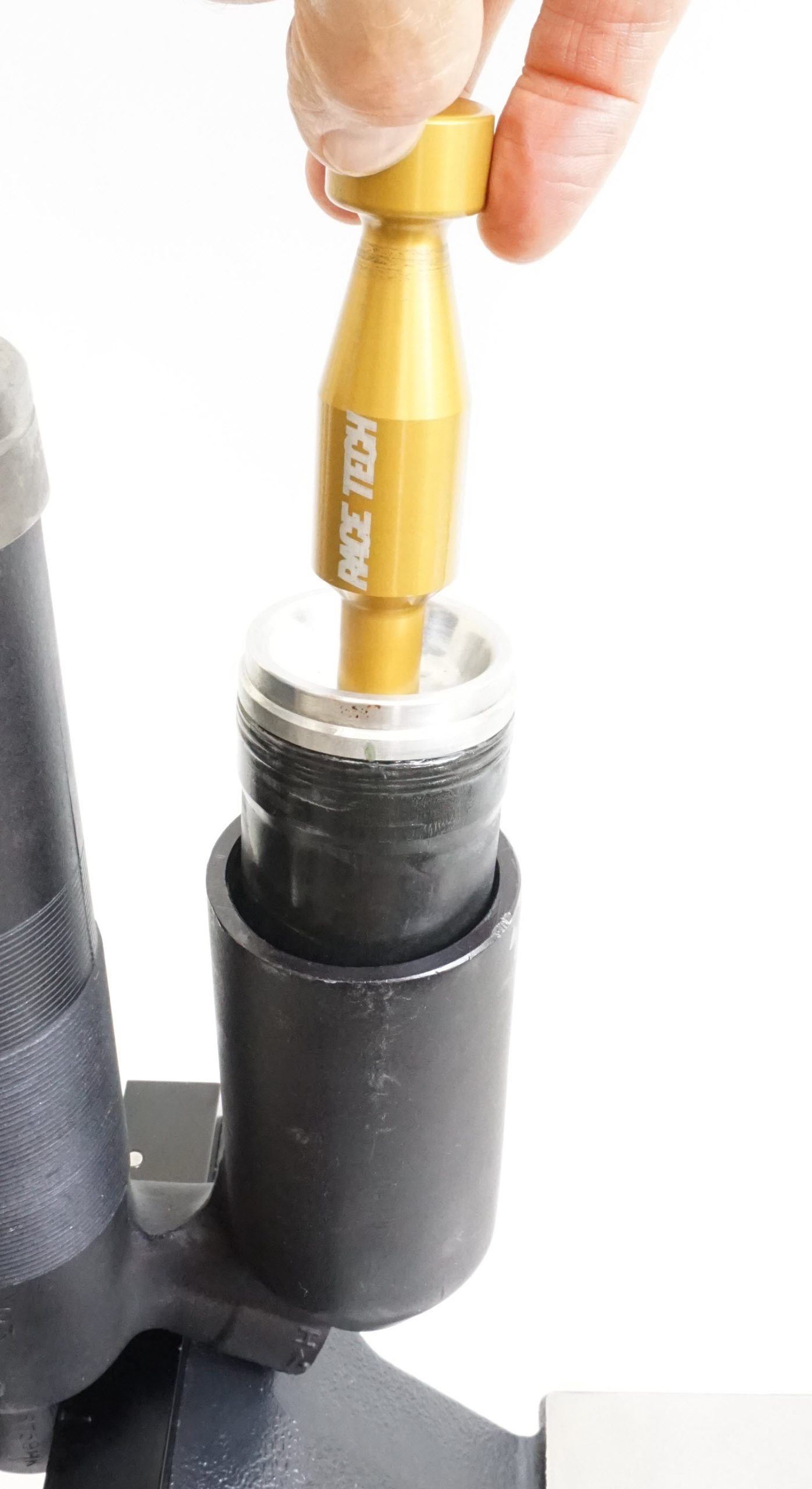

Reservoir Cap Tool

Description

TSCT 01

This tool threads onto the Schrader Valve located on the reservoir cap for easy removal.

WP Nitrogen Charging Tool

Description

The Race Tech WP Nitrogen Charging Tool works on all WP shocks with a reservoir 65mm OD or smaller.

Quick and easy to use and a "must have" if you work on a higher volume of WP shocks. Best if used with TSNG 02 Nitrogen Gauge.

This tool can be replaced with the new TSNC W74P charging tool if you also purchase the TSNC W74PBS Adapter Bushing Set.

TSNC 02

-------------------------------------------------------

If you are only working on a few shocks consider a SPNV 0512 Nitrogen Bolt with a TSNN 01 Nitrogen Needle.

SPNV 0512

Additional Images

WP Nitrogen Charging Tool for 74mm Reservoir

Description

NEW! 11-2023

TSNC W74P

The NEW Race Tech WP Nitrogen Charging Tool works on 2022.5 and later WP shocks with a 74mm OD reservoir.

It can be used on 48 thru 65mm reservoirs with the use of Adapter Bushings. These can be ordered individually or you can save a bit and purchase them as a set (TSNC W74PBS). Used with the Adapter Bushings this tool will replace the TSNC 02.

This tool is quick and easy to use and a "must have" if you work on a higher volume of WP shocks. It has clearance for the preload adjusting collar so there is no need to get it out of the way.

Pressure is best set with TSNG 02 Nitrogen Gauge.

TSNC W74P

-------------------------------------------------------

If you are only working on a few shocks consider a SPNV 0512 Nitrogen Bolt with a TSNN 01 Nitrogen Needle.

SPNV 0512

Additional Images

TSNC W74PBS Nitrogen Charging Tool Adapter Set

Description

NEW! 11-2023

TSNC W74PB Series Adapter Bushings

The new TSNC W74P WP Nitrogen Charging Tool bolts directly onto 74mm OD reservoirs. It can be used on 48 thru 65mm reservoirs with the use of Adapter Bushings. These can be ordered individually or you can save a bit and purchase them as a set.

Item codeFits
TSNC W74PBSBushing Set 48,52,58,65
TPNC W74PB4848mm
TPNC W74PB5252mm
TPNC W74PB5858mm
TPNC W74PB6565mm

Additional Images

Nitrogen Charging Tool - Zero Loss RockShox MTB G3-S Internal Schrader

Description

NEW DESIGN! 11-2023

TSNC PS21036

For charging RockShox MTB Shocks.

The movable pin depresses the valve core when used with TSNG 02 Nitrogen Gauge for Zero Pressure Loss.

No more guessing.

Also fits G3-S Shocks with Internal Schrader Charging Valves.

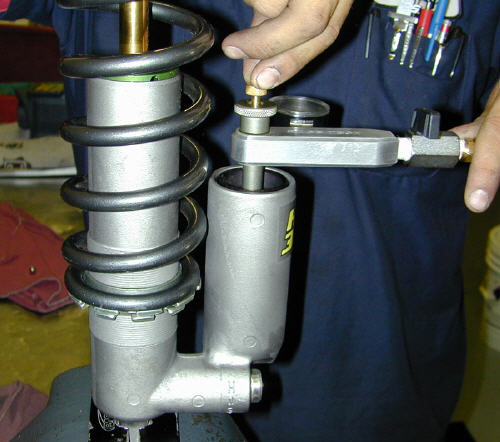

Nitrogen Gauge - Zero Loss

Description

TSNG 02

This Nitrogen Gauge does not require a wrench and easily reaches recessed valve stems without an extension

The Valve Core is depressed separately so there is no pressure loss

Comes with a 1/4" flare nut quick coupling to work with the Quick Connect Nitrogen Hose (TSNH 48)

0-300 psi gauge

We also offer a high pressure version that goes to 600 psi. TSNG 02H

Shock Nitrogen Regulator

Description

TSNR 01

0-400 psi pressure range

Quick Connect Nitrogen Hose

Description

TSNH 48

The Quick Connect Nitrogen Hose has special 800 psi "finger tight" 1/4" flare nut quick couplings

Does not require a wrench

This hose works perfectly with our Nitrogen Regulator (TSNR 01) and Nitrogen Gauges (TSNG 02 and TSNG02H)

48" long

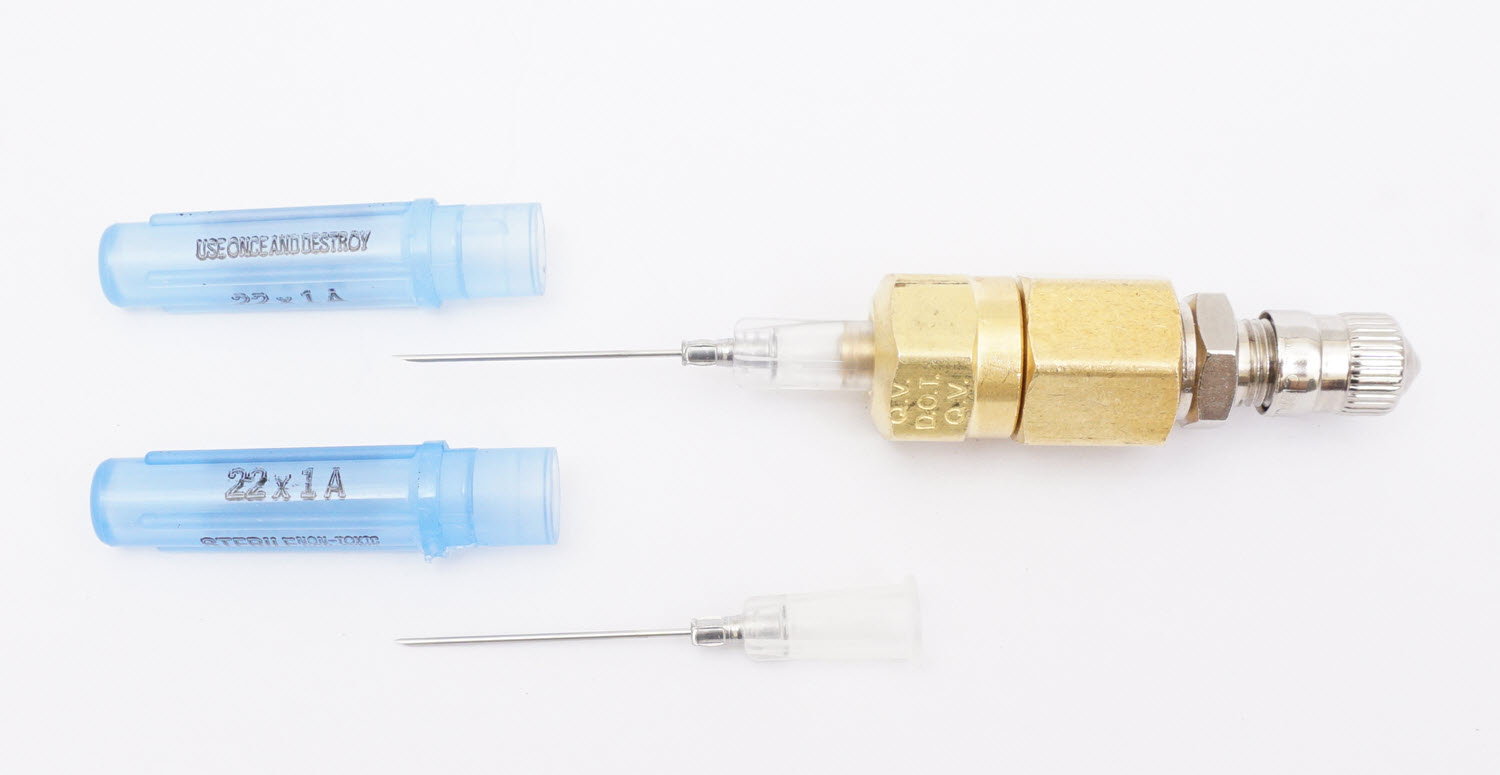

Nitrogen Needle

Description

TSNN 01

Designed for gas charged shocks with self-sealing type rubber valves

TSNN 01 Nitrogen Charging Needle

TPNN 01 Replacement Needle

SPNV 0512

2009-15 RM-Z Suzuki Shock Disassembly Tool

Description

TSPR 50

Many 50mm Suzuki shocks from 2009-15 have an "interesting" piston ring design that seals OK but has massive drag (really bad-strongly recommend a Gold Valve).

This seal gets stuck in the circlip groove during disassembly, often destroying it

This Piston Ring Tool fits into, and fills, the circlip groove allowing the seal to easily slide past

It doesn't remove the massive friction (uhh, have I mentioned Gold Valves?) but it does allow removal of the shaft assembly!

WP PDS Metering Pin Tool

Description

TSPS 1524

The WP PDS Shock Needle Tool removes the Compression Needle from the shock body on early KTM WP PDS shocks.

This is the most economical way to go (see TSPS T Series T-handle version) but only available for the early model

Required to install a SWCN 10 Telescopic Needle

For later model PDS shocks see TSPS T Series Pin Spanners

WP PDS Metering Pin Spanners

Description

TSPS Series

This is the PRO version of the needle removal tool

If you are servicing a lot of WP PDS shocks these are the one to have

It is driven with a T-handle, holds the Needle, and is self-centering in the body

Item Codepin circle x
pin diam
TSPS T152415.0 x 2.4mm
TSPS T1653016.5 x 2.4mm
TSPS T2020.0 x 2.4mm

Note: It is ok for the pin to be smaller than the hole

Shock Spring Preload Adjusting Tool

Description

TSPA 01

Tired of chewing up your shock spring collars when you adjust preload?

Well we've got the tool for you!

Can be used aggressively on preload adjusting collars with minimal damage.

Try it, you'll like it.

Additional Images

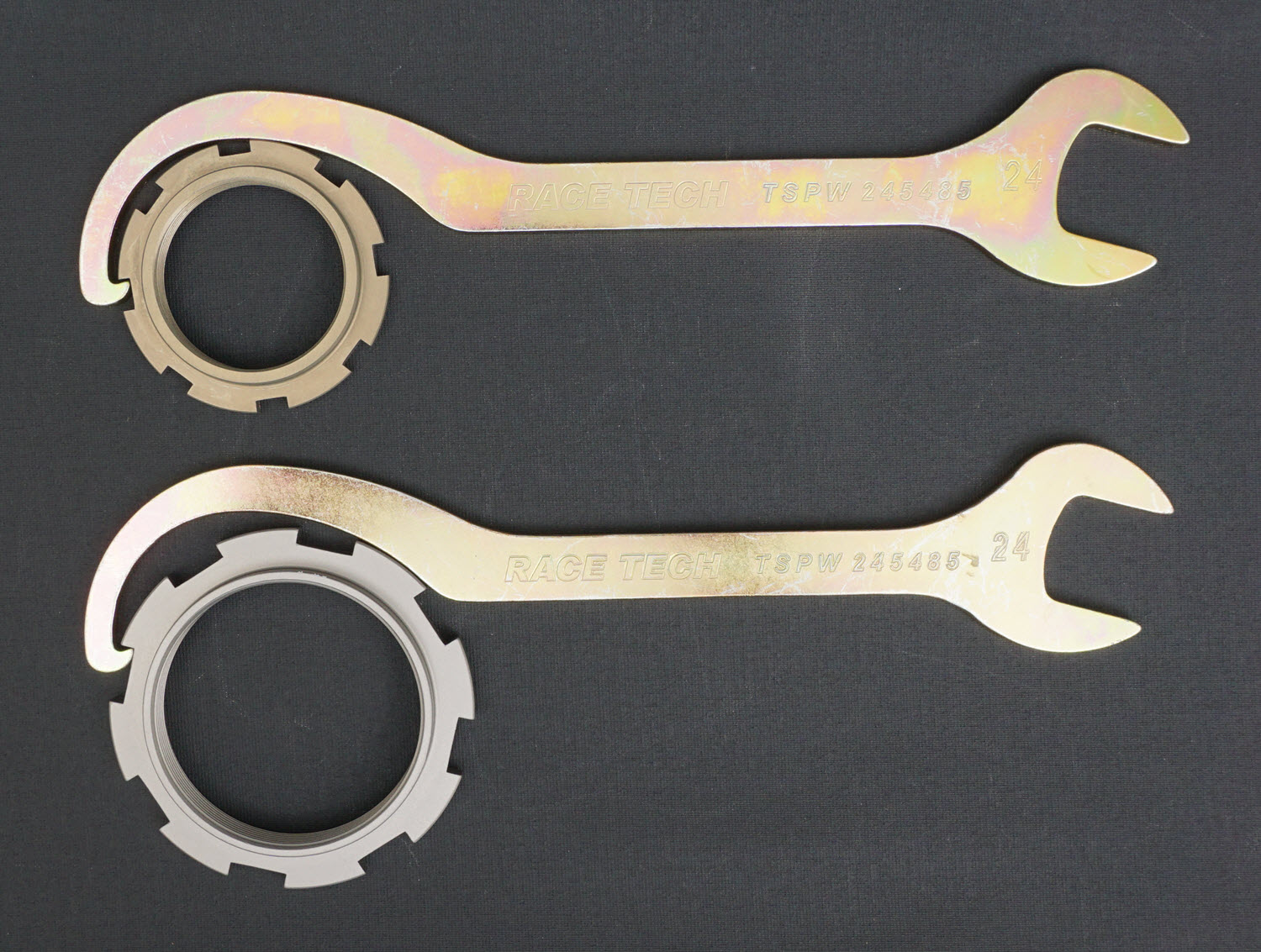

Shock Spring Preload Collar Adjusting Wrench

Description

TSPW 246785

Designed to fit multiple diameter collars

Back-cut hook to reduce the possibility of slippage

24mm open end wrench for adjusting ride height

Check out TSPA 01 for a Preload Adjusting Tool you can be really aggressive with

KYB YZ Shock Reservoir Cap Tool

Description

TSRC 01

This tool is used to tap the bladder cap down to remove the snap ring on late model YZs eliminating the possibility of damage to the Schrader Valve

Additional Images

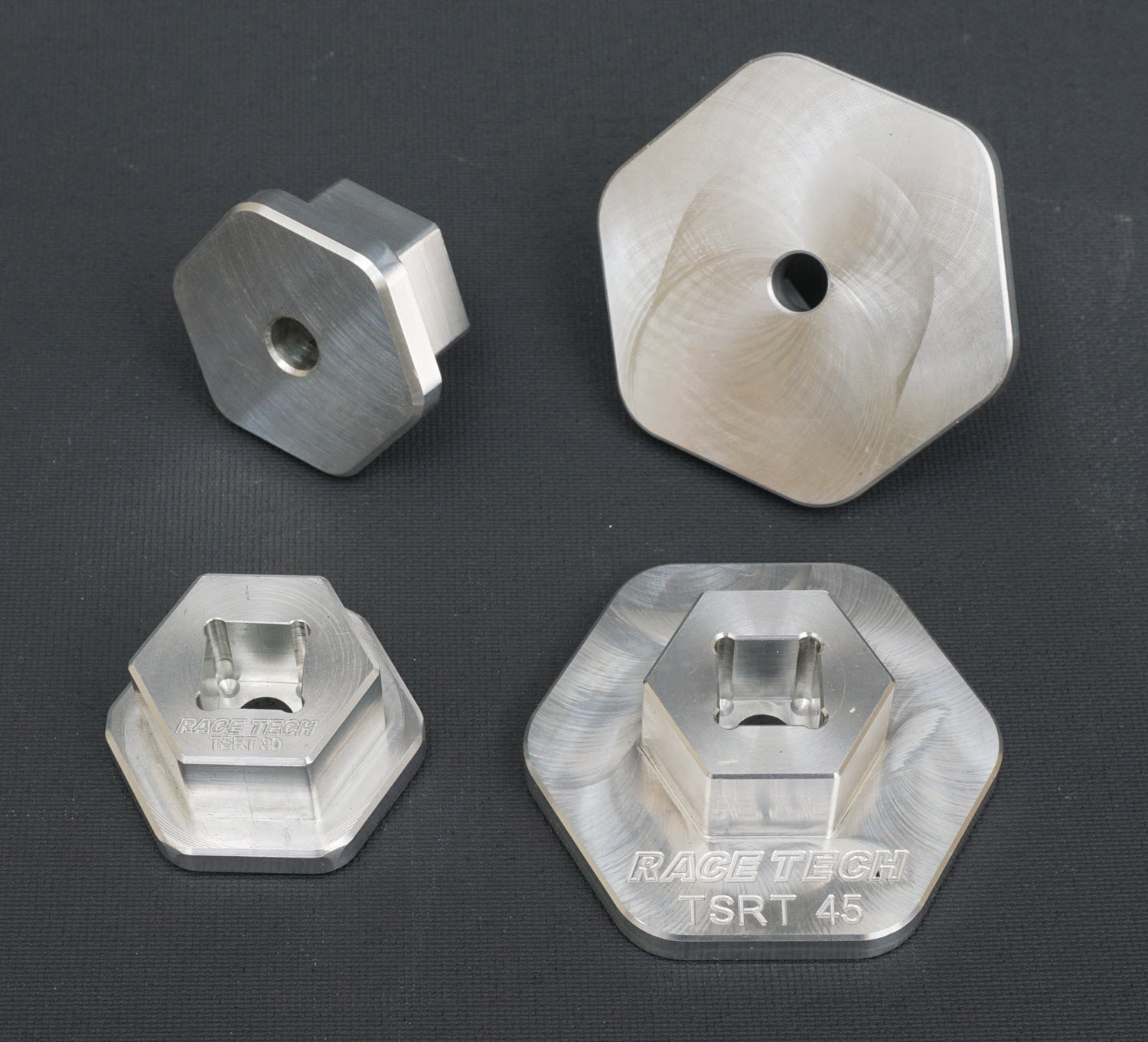

Shock Reservoir Tool

Description

NEW! 11-2023

TSRT 45

Removes the reservoir from WP shocks with 74mm OD reservoir bodies

45mm hex drive

Reservoir removal is commonly done for SWBL 6002 Bladder Conversions and/or complete shock service

Shock Reservoir Piston Setting Tool

Description

NEW!

TSRS 03050

Can be used on most Piston Style Shock Reservoirs

Features two o-rings to easily mark the full bottom-out point as well as the piston set point

M3x.5mm thread. Use of the thread is not required

Shock Seal Bullet Tools

Description

TSSB Series

Makes installing seal heads onto shock shafts quick and safe

Eliminates the possibility of seal damage

Item codeFits
TSSB 12512.5x10mm
TSSB 1414x12mm
TSSB 1616x12mm
TSSB 1818x16mm
TSSB 181218x12mm

Shock Spring Compressor Lever Type

Description

TSSC 01

Provides quick removal and installation of most shock springs with spring rates up to 8 kg/mm

Particularly useful for test days as you don't have to touch the preload collars

Features a Shaft Locking Device for safety

Additional Images

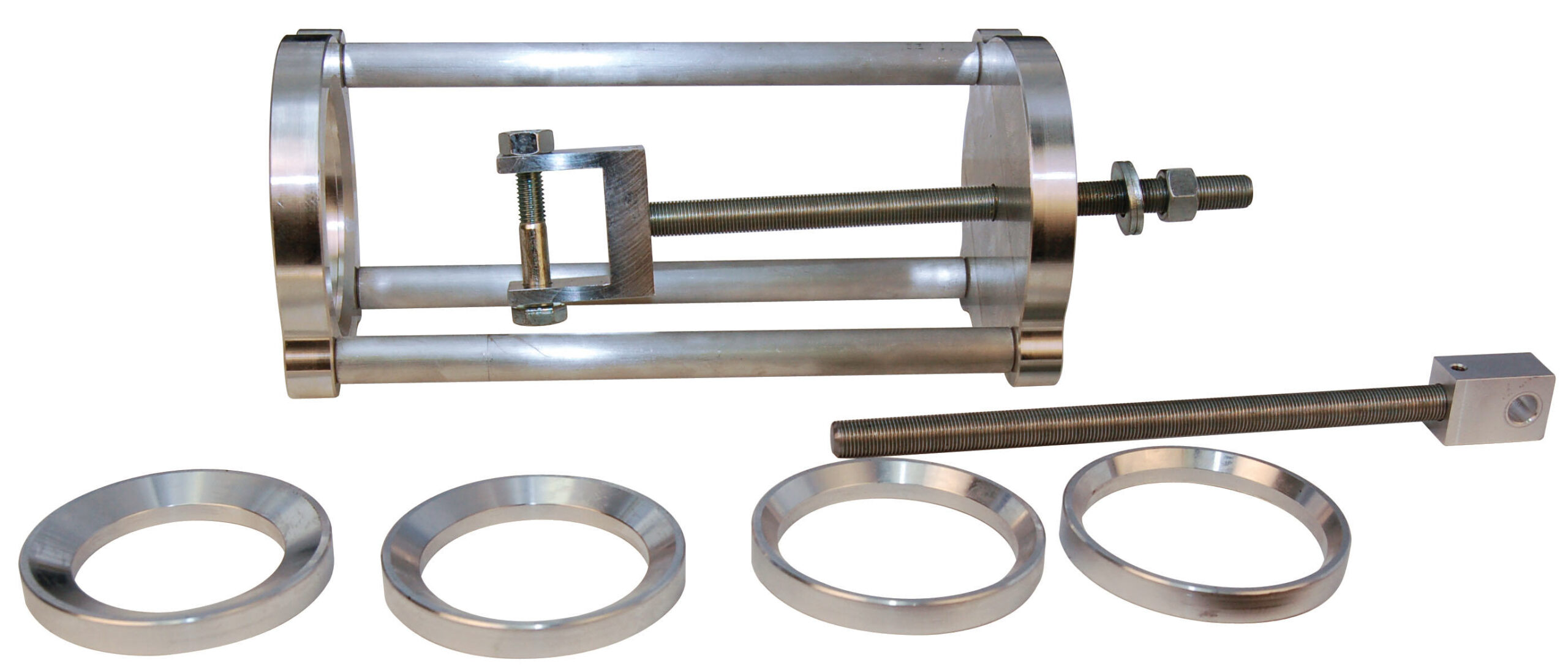

Shock Spring Compressor Portable

Description

TSSC 02

Strong, light-weight and easy to use

Can be used up to 20 kg/mm springs

Includes 4 adapters (60, 66, 72, and 75mm) for different size spring collars and both an eyelet and clevis adapter

Invented by Jason Eldredge of Corporate Suspension in Utah

This one is so cool you’ll want to remove shock springs just for the fun of it. More Info...

Additional Images

Sag Master

Description

TSSM 01

Voted as Dirt Bike Magazine's 25 Best Tools Ever Invented, the Sag Master is a tool that makes measuring Static "Race" Sag a snap because you read it directly. No subtracting!

The pin on the back of the Sag Master goes into the hollow rear axle. The tape measure gets extended up to a reference mark vertically above the axle.

When the rider is put on board and the suspension compresses you read sag directly.

Also useful in monitoring linkage and seal drag.

Doubles as a tape measure!

â–ºFollow the link for details and the complete procedure.

Shock Seal Head Setting Tool

Description

TSSS Series

Allows the user to easily push shock seal heads into the bodies.

Four sizes available. Mini's, Standard 40-50mm, Street and WP PDS 50mm shocks.

Item CodeFits
TSSS 0140-50mm standard
TSSS 01S40-50mm Short (street)
TSSS 0250mm WP
TSSS 0333-36mm mini

Additional Images

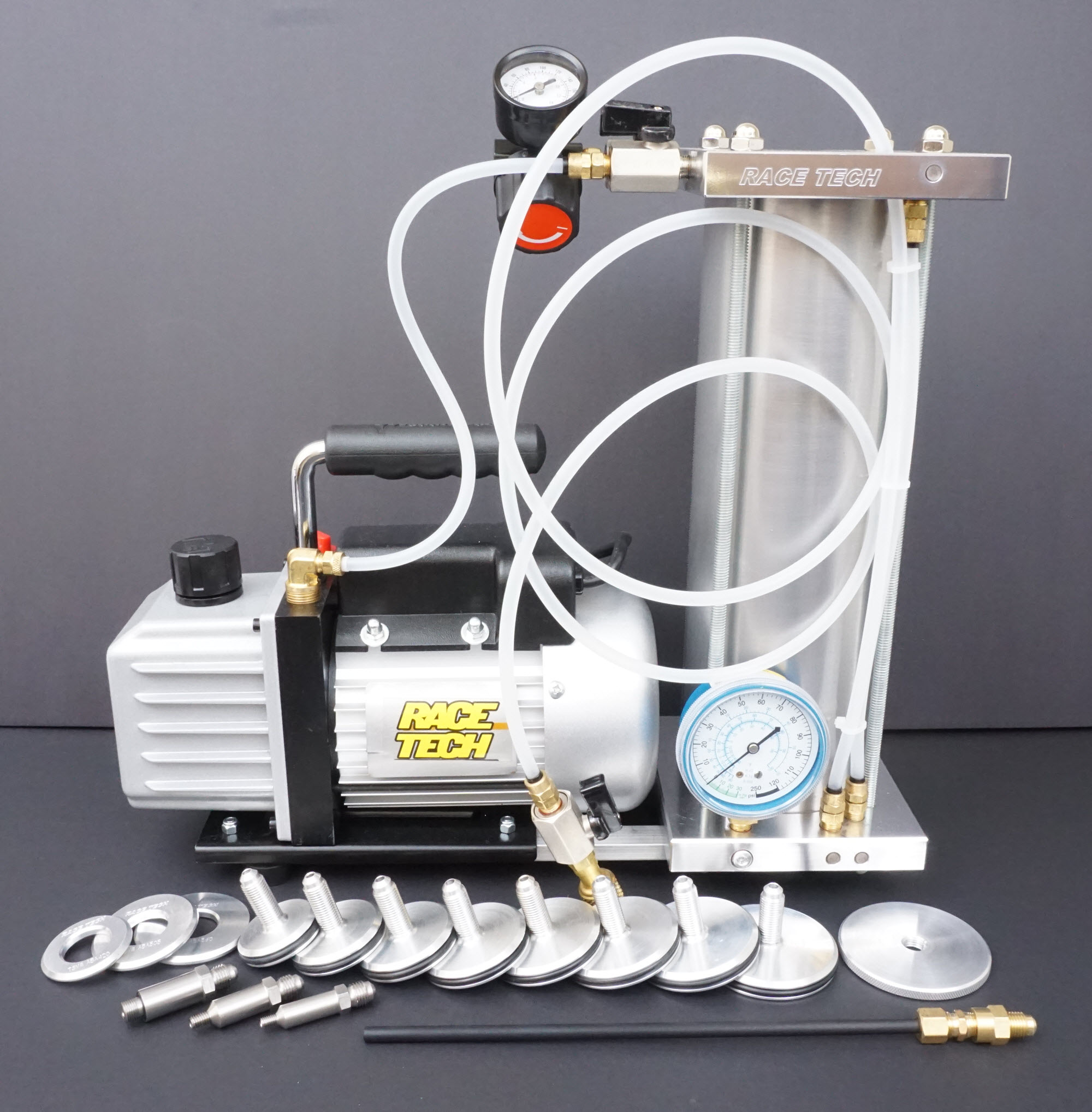

Description

TSVM 01

The Vacuum Master Shock Bleeding Tool makes high-tech shock filling more affordable. This machine not only saves time and increases efficiency, but it creates a "perfect bleed".

This Vacuum Bleeding Tool is the most powerful on the market. It is so powerful it actually draws air out of the suspension fluid itself!

Comes with adapters to fit most shocks.

â–ºLearn More

Vacuum Master Single Hose Conversion

Description

TSVM SC01

This kit upgrades older "2 hose" Vacuum Masters to single hose style.
