Suspension Tools -All

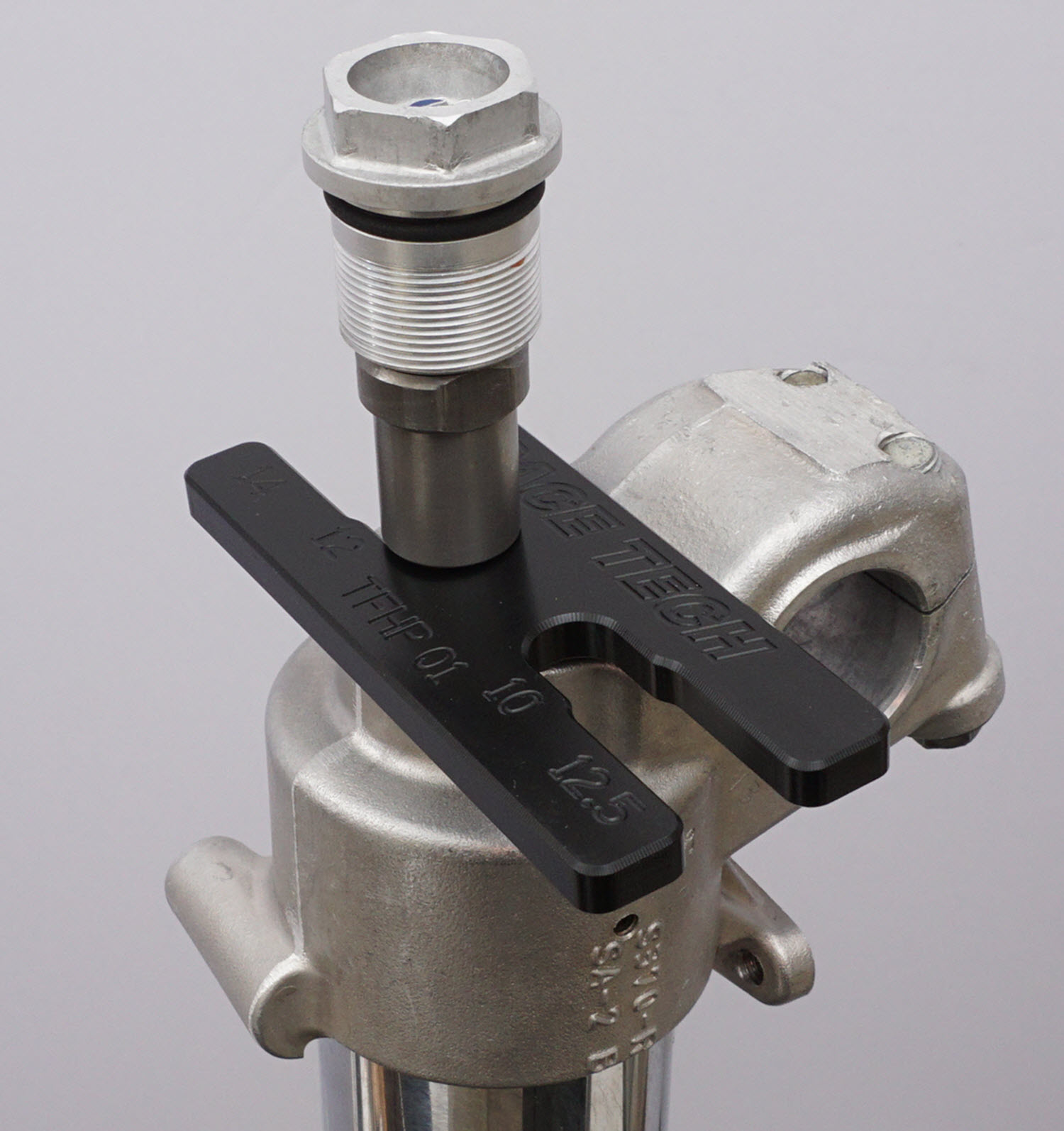

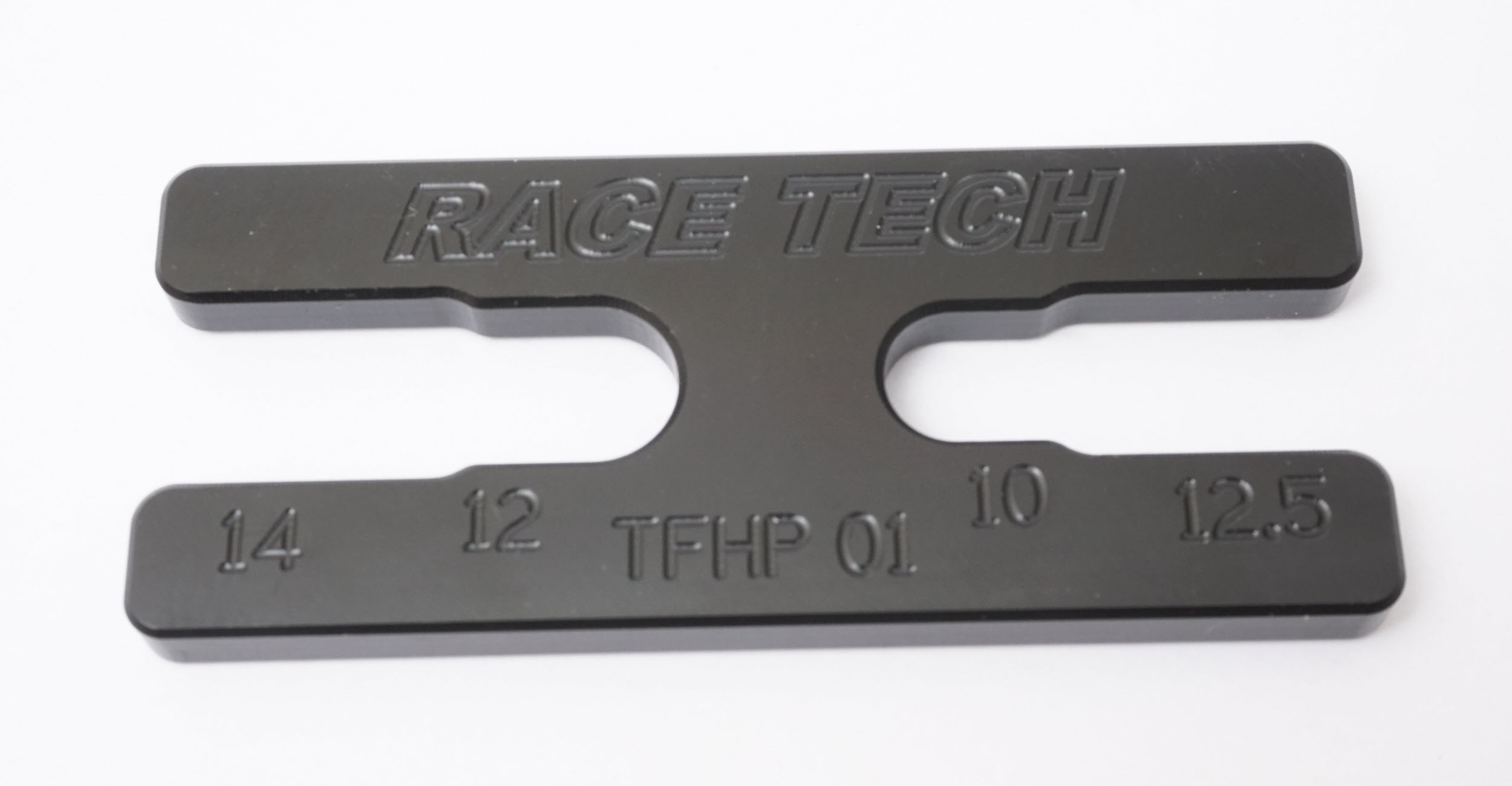

Cartridge Rod Holding Tool
Description
TFHP 01
Makes servicing Showa, WP, and KYB Twin-Chamber as well as most street cartridge forks much easier.
Holds back the spring allowing you to get to the bottom nut or the fork cap on the cartridge rod.
Plastic material keeps shafts from being marred. New design fits 10, 12, 12.5, 14mm
Fork Seal Head Wrench - WP XACT Pro
Description
NEW!
TFSW 64
Allows access to the Fork and Dust Seal. This design is different than most forks as the Seal Head must be unscrewed from the Fork Tube for disassembly.

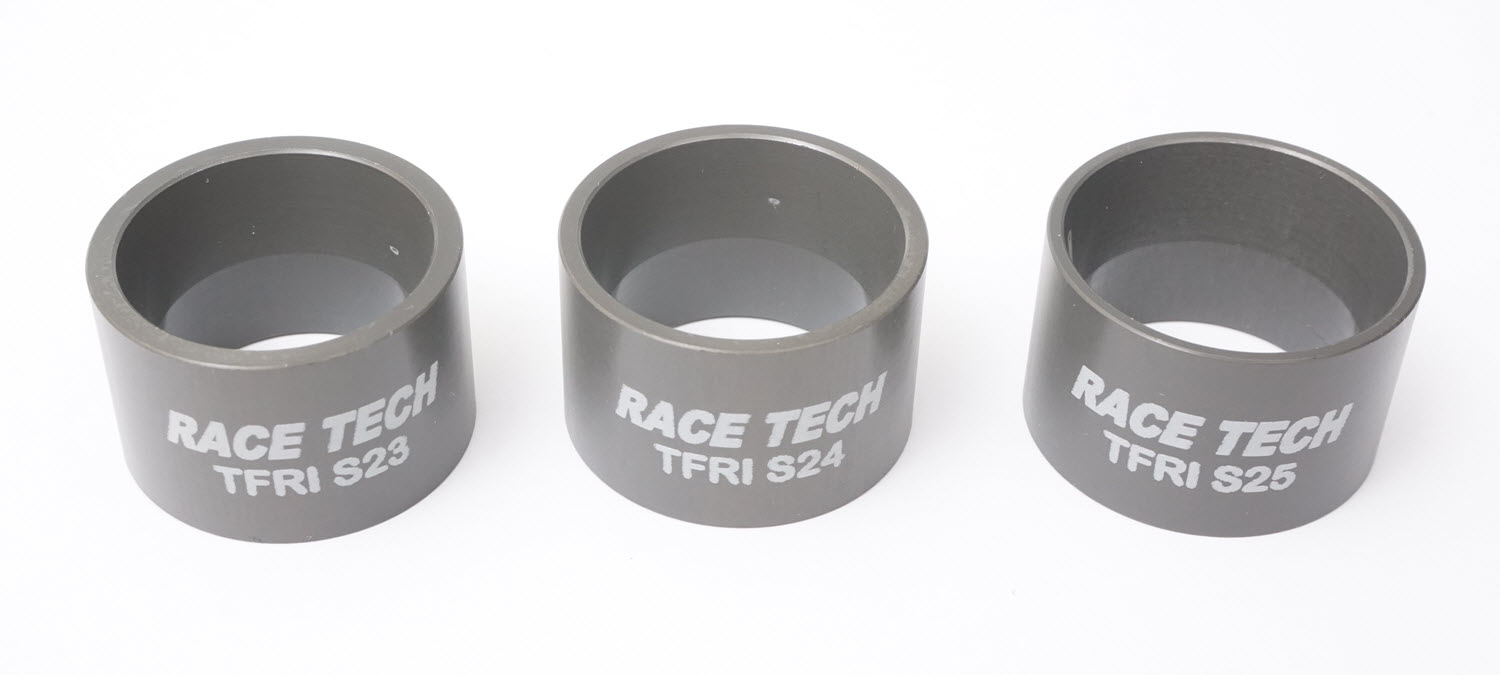

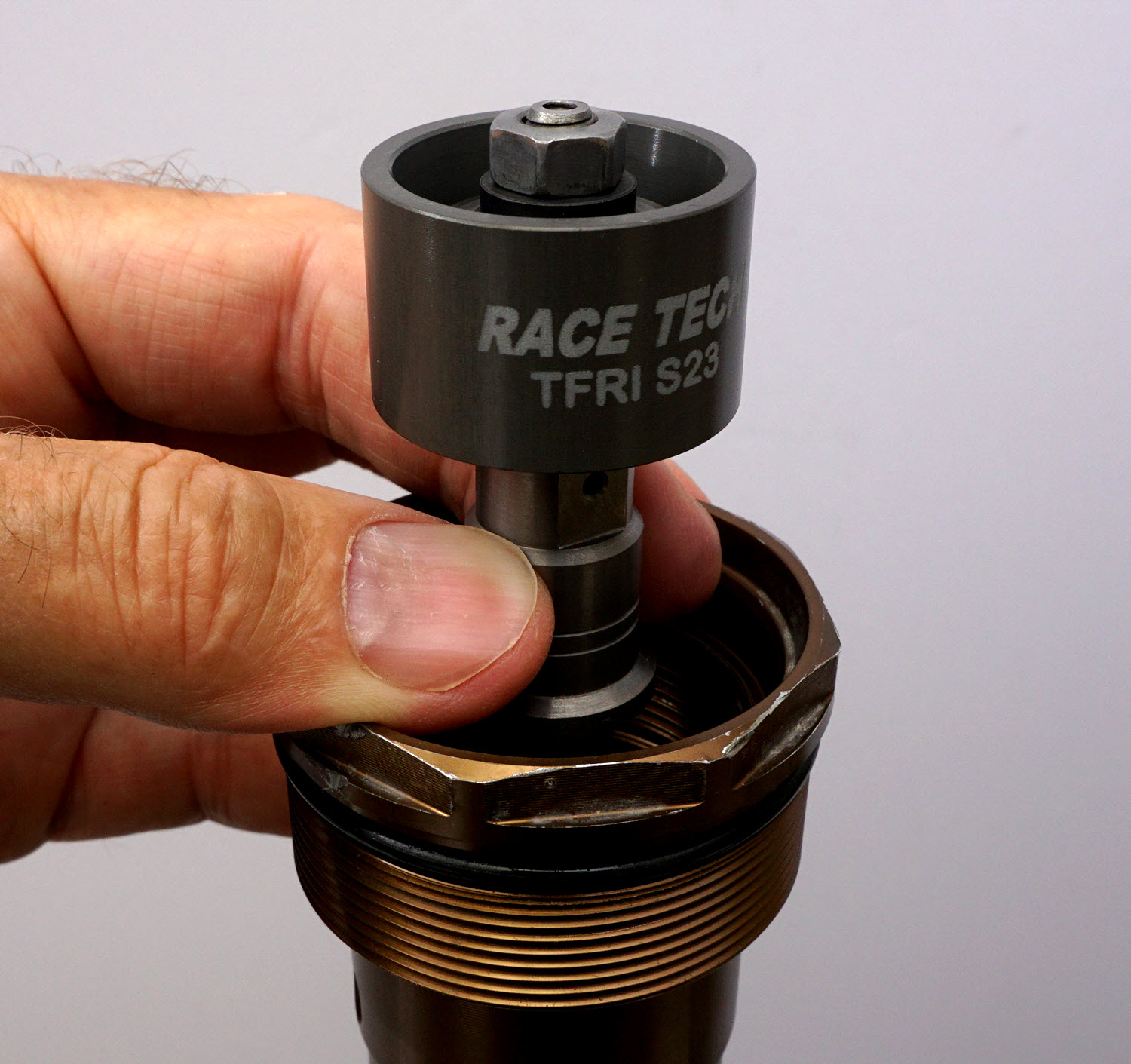

Fork Rebound Rod Installation Sleeves
Description
NEW!
TFRI S232425SET
Many newer Cartridge designs have a sharp edge that can snag and damage the Rebound Piston Ring. These tapered sleeves allow easy installation of the Rebound Rod Assembly into the Cartridge.
Fork Compression Tools - Showa Twin-Chamber
Description
NEW!
TFCT 371917 and TFCT 451919
These are dual-purpose tools for many Showa Twin Chamber Forks.
Allows access to the Fork Compression Valve Assembly from the top of the cartridge AND, by flipping it over, removes the Seal Head on the bottom of the cartridge.
Best if used with the appropriate TFCW Fork Cap Wrench.
Fork Compression Tool - Showa TAC and KYB
Description
TFCT 3622
This is a dual-purpose tool for the Showa SFF Air TAC Fork.
Also fits many earlier KYB Dual Chamber Compression Caps.
Allows access to the Fork Compression Valve Assembly from the top of the cartridge AND, by flipping it over, removes the Base Bolt on the bottom of the fork.
Fork Compression Tool - YZF-R6 2006-16
Description
TFCA 02
For accessing the compression valving on 2006-16 R6.
Triangular bore
3/8" drive
Fork Compression Tool - WP 48 Cone Valve
Description
NEW!
TFCT PS21040
Fork Compression Tool for WP 48mm Cone Valve Kit Spring Fork
21mm diameter slot type with a cutout for air bleeders
3/8" drive
Fork Compression and Cap Tool - Sachs
Description
NEW!
TFCW 50D390
Fits Sachs 48mm Upside Down Closed Chamber Forks
10 sided and is dual-purpose
Fits the 39mm Compression Valve Assembly when it is flipped over
3/8" drive
Fork Compression and Cap Tool - WP 4CS
Description
TFCW PS38048
Dual-purpose tool for the WP 4CS Fork
Allows removal of the fork cap AND
by flipping it over, the Compression Base on the bottom of the fork
Fork Cap Tool - K-Tech
Description
NEW!
TFCT CST3801
Fits K-Tech triangle drive fork caps
3/8" drive
Fork Cap Wrenches
Description
WP 48mm
FORK CAP WRENCH
Fits 48mm WP forks that require a pin spanner (slots - no hex)
40mm pin circle x 3.2mm pins
TFCW 02
24/32/41mm Hex
FORK CAP WRENCH
Three sizes fit common sport bikes
TFCW 243241H
NEW!
WP 43mm AER FORKS (85s)
FORK CAP WRENCH
Has 35 and 45mm hex
TFCW 3545H
SHOWA R6 and 41-43mm BIG PISTON FORK (BPF)
FORK CAP WRENCH
This BPF Fork Cap Wrench, along with the TFCH 06 Cartridge Tool fits Showa BPF (Big Piston Forks)
These tools are a "must have" for maintenance of:
12-19 CBR1000RR
12-19 CBR600RR
09-15 GSX-R1000
11-15 GSX-R600
11-15 GSX-R750
10-12 H-D XR1200X
09-18 ZX-6R
11-15 ZX-10R
Has 45 and 49mm octagons
TFCW 4549
SHOWA 47/49mm TWIN-CHAMBER
FORK CAP WRENCH
Fits 47 and 49mm Showa forks
Has 46 and 50mm octagons
Removes Compression Valving Assembly on most models too
TFCW 4650
NEW REVISION!
WP 48mm DUAL-CHAMBER
FORK CAP WRENCH
Fits KTM WP 48mm Closed Chamber Forks that require a 50mm hex
Includes 29 x 4.8mm Pin Spanner
TFCW 50H
Fork Cartridge Tool - WP KTM 65
Description
TFCH PS24050
Service the Valving and Spring in the Inner Fork Tube on KTM 65s
It is possible to use a TPPS 02 Pin Spanner but this one is much more robust
Fork Cartridge Holding Tools
Description
TFCH Series
Holds cartridge during disassembly and assembly.
View ►Product Search for applications.
| Item Code | Fits | |
| TFCH 01 | Most KYB and Showa 20mm cartridges | |
| TFCH 03 | Many KYB 46 & 48mm open chamber forks | |
| TFCH 04A | Yamaha 06- R6, 09- R1 | |
| TFCH 06 | BPF 41 & 43mm forks | |
| TFCH PS24050 |
WP KTM 65 Seal Head |
Fork Cartridge Tool - Showa Big Piston Forks
Description
TFCH 06
Fits Showa BPF (Big Piston Forks)
Double sided for 41 and 43mm Forks
These tools are a "must have" for maintenance of:
12-19 CBR600RR, 12-19 CBR1000RR
11-15 GSX-R600, 11-15 GSX-R750, 09-15 GSX-R1000
16-19 H-D XR1200CX, 10-12 H-D XR1200X
09-18 ZX-6R and 11-15 ZX-10R
Fork Cap Assembly Tool - WP 48 Cone Valve
Description
NEW!
TFCT PA4801
For maintenance of WP 48mm Fork Caps on Cone Valve Kit Spring Forks with preload adjustment.
Required for replacement of the o-ring when the cap leaks.
Damping Rod Holding Tool
Description
TFDH 01
Some Damping Rods are difficult to remove because they spin
Making a special tool for each model can be a pain
This simple tool is a tapered aluminum rod
With a tap of a hammer, the taper wedges into the ID of most Damping Rods, late model and vintage
You may be surprised by how well it holds! Many forks come apart easily, but this versatile tool is great to have when you need it
Fork Cartridge Bleeding Tools
Description
Threads onto the Damping Rod for bleeding the cartridge.
Unique self-starting design easily threads onto the damping rod. Baffled so the oil runs down the rod instead of squirting out sideways.
Essential for Street Cartridge Forks but also fits many dirt forks.
(Works great with TFSC 01 and TFSC 02 Spring Compressors.)
Fork Clicker Adjuster Tool
Description
TFCA 01
The Fork Compression Adjuster is basically a super-stubby screwdriver
Fits between the handlebar and the top of the fork tube
Graduated Cylinder
Description
TFGC 500
Accurately measures fork oil for filling Twin-Chamber forks
500cc capacity
Hex Front Axle Tool
Description
TFHD 1724
Fits many sport and dirt bikes
Multi-sized - 17, 19, 22, 24mm
Oil Level Setting Tool
Description
TFOL 02
Collapsible tube allows setting fork fluid levels with only two hands
Does not require a third hand!
Fork Preload Sockets
Description
TFPA Series
Stop rounding off the edges of your adjusters
Sockets allow you to perform fork preload changes more easily
Specially designed for fork preload adjuster that are round with two flats
3/8" Drive
TFPA 14
TFPA 17
Radial Pin Spanner
Description
NEW!
TFPS R5701
The Radial Pin Spanner has lots of uses. It has tapered pins so it can fit many hole sizes
On most Twin-Chamber Forks it can be used to remove Compression Holders to get to the Pressure Spring and Compression Post
It can also be used as a Fork Spring Compressor on lots of street bikes with cartridges (although the TFSC 01 Spring Compressor is MUCH better!)
Fork Seal Installation Sleeves
Description
TFSB 01
Fork Seal Installation Sleeves are simply thick wall plastic bags!
They are simple, inexpensive, yet effective solution for protecting the fork seals on installation
Comes in a pack of 5
Fork Spring Compressor - Portable
Description
TFSC 01
Most street bikes with cartridges require a spring compressor
This portable Fork Spring Compressor can be used on or off the bike on many models
Fork Spring Compressor - Foot-Operated
Description
TFSC 02
Designed to work on most sport bikes and road racers with cartridge forks
It allows the spring to be compressed while the fork cap is removed from the rod
This design is wall mounted and really easy to use
Fork Spring Compressor Adapter
Description
TFSC A01
For some models that don't have fork spring spacers - particularly Harley-Davidson
Used with either TFSC 01 or TFSC 02
Fork Seal Drivers
Description
TFSD Series
Fork seal drivers
Split design
These are the standard of the industry
| Item Code | Diameter | |
| TFSD 31 |
30-31mm | |
| TFSD 33 | 33mm | |
| TFSD 35 |
35mm | |
| TFSD 37 | 36-37mm | |
| TFSD 39 |
38-39mm | |
| TFSD 41 |
40-41mm | |
| TFSD 43 |
42-43mm | |
| TFSD 46 |
45-46mm | |
| TFSD 48 | 47-48mm | |
| TFSD 50 |
49-50mm |
Shaft Holding Tools
Description
TFSH Series
Holds fork damping rods, cartridges, shock shafts, etc.
Can be used with any vise but made for TMVJ 065 Vise Jaws
The holding tools hang on the pins instead of dropping on the ground (and into the oil pan) when the vise is opened
| Item code | Fits | |
| TFSH 10 | 10,12,12.5,14mm | |
| TFSH 14 | 14,16,18mm | |
| TFSH 20 | 20,24,29mm | |
| TFSH 32 | 32,35mm | |
| TFSH S500 | 1/2" |
Shaft Holding Tool on TMVJ 065 Vise Jaws
Shaft Holding Tools 58 & 65mm
Description
TFSH 58 and TFSH 65
Ideal for removing and installing WP and RT shock and reservoir bodies
Four pinch bolts and can be used in a hydraulic press for additional holding power
Billet aluminum
Note: You can make custom bushings to clamp smaller tubes including Fork Tubes, Shock Bodies, etc. Custom bushings can be made by your local machinist and are not available through RT
TFSH 58 (58mm)
TFSH 65 (65mm)
Fork Tube Holding Tool - Grom 31
Description
TFSH 31
This is a must for working on Grom forks
It has a pin that locates in a hole in the fork tube so there is no chance of slippage
Grom forks also require a long 14mm Allen (TMWA 14)
14x100 Allen Hex
Description
TMWA 14
This is a long 14mm Allen. It is a must for working on Grom forks
Drive it with a 14mm socket
------------------------------------------------------------------------
Grom forks also require a TFSH 31 shaft holding tool for the fork tube
TFSH 31
Fork Tube Disassembly Tool
Description
TFTT Series
Remove and replace fork tubes from fork bottoms (AKA axle clamps, fork lugs, etc) on upside-down forks.
| TFTT 01 | Standard 2 Hole | |
| TFTT 02 | WP 3 Hole and Standard 2 Hole |
Piston Ring Installation Tool - WP Bladder Forks
Description
TFPC 2328
Fits WP 48mm Bladder Forks
Makes installation easy on split rebound piston rings
Pin Spanners
Description
TMPS Series
If you have ever used a Pin Spanner you have probably had one slip out and damage the hole. RT Pin Spanners have a unique pin design with a reverse taper to keep them from popping out during use.
Each pin set is double sided
Hardened Tool Steel
Note-the sizes listed are of the actual pin diameter
Use the largest pin that fits in the hole to avoid breakage
3 pins - 6 sizes total:
2.6/3.3, 3.8/4.3, and 4.8/5.3mm
Replacement Pins sold in pairs.
| Item Code | Description | |
| TMPS 2633 | 2.6 & 3.3 Spanner | |
| TMPS 3843 | 3.8 & 4.3 Spanner | |
| TMPS 4853 | 4.8 & 5.3 Spanner | |
| TMPS P2633 P | 2.6/3.3 Replacement Pins |
|
| TMPS P3843 P | 3.8/4.3 Replacement Pins |
|
| TMPS P4853 P | 4.8/5.3 Replacement Pins |
We also offer other Pin Spanners specific to their applications including:
TSPS Series - for WP PDS Compression Needles
TFCH PS24050 - WP KTM 65 Fork Seal Heads
TFCW PS38048 - WP 4CS Fork Caps
TFCW 50H - WP 50mm Hex & 29 x 4.8 Pin Spanner Fork Caps
Suspension Vise Jaws (aluminum)
Description
TMVJ 065
RT Suspension Vise Jaws gently, yet firmly, hold fork tubes, fork legs and other round objects in a “V” down to a diameter of 12.5mm (½”).
The “V” is offset and overhangs the edge of the standard vise jaw to provide clearance for large diameter tubes.
Fits many 4 to 6.5” Craftsman, Wlton, DeWalt, and other vises with removable jaws. The jaws have a bolt spacing of 2.5, 3, and 3.5 inches. They can be drilled to fit other vises too.
Bonus!! Has pop-up pins to hang TFSH Shaft Holding Tools. This means the Shaft Holding Tools don't fall into the oil pan every time you use them.
Double Bonus!! With the use of the MTB Add-on Kit these are awesome for MTB forks.
Comes with M6x1.0 and 1/4"-20 mounting bolts.
Additional Images
Suspension Vise Jaws MTB Add-on Kit
Description
NEW! 11-2023
TMVJ 065MA
This is an add-on to the TMVJ 065 Vise Jaws for use on MTB forks. It includes a Support Pin and two Protection Sleeves.
The Support Pin fits into the holes in the end of the Vise Jaws and keeps the fork from rotating. The Protection Sleeves get wrapped around the fork tubes to keep them from getting beat up. This is simple and easy to use. With the Support Pin the forks do not require much pressure to hold.
If you already have earlier TMVJ 065 Vise Jaws and they don't have holes in the end you can modify them by drilling 1/2" holes 1.1" deep (or maybe it's time for a new set of jaws).
T-HANDLE TOOL SET
Description
TTHS 02
Excellent quality, great price. Chrome Vanadium, deep 6 point sockets.
Includes 8,10,12,14 and 17mm
Shock Body / Reservoir Holding Tools 58 & 65mm
Description
TFSH 58 and TFSH 65
Ideal for removing and installing WP and RT shock and reservoir bodies
Four pinch bolts and can be used in a hydraulic press for additional holding power
Billet aluminum
Note: You can make custom bushings to clamp smaller tubes including Fork Tubes, Shock Bodies, etc. Custom bushings can be made by your local machinist and are not available through RT
TFSH 58 (58mm)
TFSH 65 (65mm)
Bushing Drivers
Description
TSBD SET
Used to remove and replace shock shaft bushings into most seal heads
12.5, 14, 16, and 18mm
Shock Compression Adjuster Sockets
Description
TSCA Series
Used to service shock compression adjusters.
| Item code | Fits | |
| TSCA 01 | YZ Special | |
| TSCA 19 |
19mm, 2 flats | |
| TSCA 21 | 21mm, 2 flats | |
| TSCA 24 |
24mm, 2 flats | |
| TSCA 34 |
34mm, 12 point WP |
Note: On some shocks there are punch marks at the threads. These must be drilled 1 mm deep prior to compression adjuster removal.
TSCA 34 WP 12 point
Clip Tool
Description
TSCP 01
Removes shock retaining clips without digging into the shock bodies
Made of hardened tool steel
You'll really like this one!
Reservoir Cap Tool
Description
TSCT 01
This tool threads onto the Schrader Valve located on the reservoir cap for easy removal.
WP Nitrogen Charging Tool
Description
The Race Tech WP Nitrogen Charging Tool works on all WP shocks with a reservoir 65mm OD or smaller.
Quick and easy to use and a "must have" if you work on a higher volume of WP shocks. Best if used with TSNG 02 Nitrogen Gauge.
This tool can be replaced with the new TSNC W74P charging tool if you also purchase the TSNC W74PBS Adapter Bushing Set.
TSNC 02
-------------------------------------------------------
If you are only working on a few shocks consider a SPNV 0512 Nitrogen Bolt with a TSNN 01 Nitrogen Needle.
Additional Images
WP Nitrogen Charging Tool for 74mm Reservoir
Description
NEW! 11-2023
TSNC W74P
The NEW Race Tech WP Nitrogen Charging Tool works on 2022.5 and later WP shocks with a 74mm OD reservoir.
It can be used on 48 thru 65mm reservoirs with the use of Adapter Bushings. These can be ordered individually or you can save a bit and purchase them as a set (TSNC W74PBS). Used with the Adapter Bushings this tool will replace the TSNC 02.
This tool is quick and easy to use and a "must have" if you work on a higher volume of WP shocks. It has clearance for the preload adjusting collar so there is no need to get it out of the way.
Pressure is best set with TSNG 02 Nitrogen Gauge.
TSNC W74P
-------------------------------------------------------
If you are only working on a few shocks consider a SPNV 0512 Nitrogen Bolt with a TSNN 01 Nitrogen Needle.
Additional Images
TSNC W74PBS Nitrogen Charging Tool Adapter Set
Description
NEW! 11-2023
TSNC W74PB Series Adapter Bushings
The new TSNC W74P WP Nitrogen Charging Tool bolts directly onto 74mm OD reservoirs. It can be used on 48 thru 65mm reservoirs with the use of Adapter Bushings. These can be ordered individually or you can save a bit and purchase them as a set.
| Item code | Fits | |
| TSNC W74PBS | Bushing Set 48,52,58,65 | |
| TPNC W74PB48 | 48mm | |
| TPNC W74PB52 | 52mm | |
| TPNC W74PB58 | 58mm | |
| TPNC W74PB65 | 65mm |
Additional Images
Nitrogen Charging Tool - Zero Loss RockShox MTB G3-S Internal Schrader
Description
NEW DESIGN! 11-2023
TSNC PS21036
For charging RockShox MTB Shocks.
The movable pin depresses the valve core when used with TSNG 02 Nitrogen Gauge for Zero Pressure Loss.
No more guessing.
Also fits G3-S Shocks with Internal Schrader Charging Valves.
Nitrogen Gauge - Zero Loss
Description
TSNG 02
This Nitrogen Gauge does not require a wrench and easily reaches recessed valve stems without an extension
The Valve Core is depressed separately so there is no pressure loss
Comes with a 1/4" flare nut quick coupling to work with the Quick Connect Nitrogen Hose (TSNH 48)
0-300 psi gauge
We also offer a high pressure version that goes to 600 psi. TSNG 02H
Shock Nitrogen Regulator
Description
TSNR 01
0-400 psi pressure range
Quick Connect Nitrogen Hose
Description
TSNH 48
The Quick Connect Nitrogen Hose has special 800 psi "finger tight" 1/4" flare nut quick couplings
Does not require a wrench
This hose works perfectly with our Nitrogen Regulator (TSNR 01) and Nitrogen Gauges (TSNG 02 and TSNG02H)
48" long
